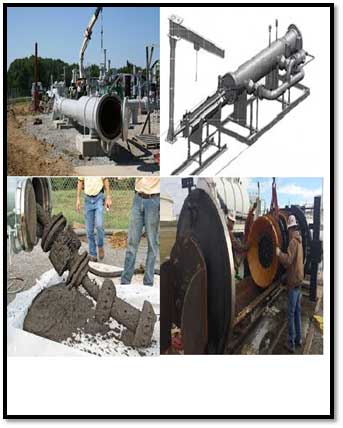

A pig launcher and receiver is a pipeline equipment used in the oil and gas industry to launch and receive pipeline inspection gauges, commonly referred to as “pigs”. Pigs are cylindrical devices inserted into pipelines to clean, inspect, and maintain them. Pigs can be propelled through pipelines using a fluid or gas, and can perform tasks such as cleaning, scraping, and measuring.
A pig launcher is a device used to launch pigs into a pipeline. It consists of a pressure vessel, valves, and fittings, and is designed to withstand the high pressure and flow rates of the fluid or gas used to propel the pig. The launcher is typically located at the beginning of a pipeline and is connected to the main pipeline via a tee fitting.
To launch a pig, the launcher is first pressurized with the fluid or gas used to propel the pig. The pig is then loaded into the launcher and secured in place. Once the launcher is fully pressurized and the valves are in the correct position, the pig is released into the pipeline and propelled through the pipeline by the flow of fluid or gas.
A pig receiver is a device used to capture the pig at the end of the pipeline. It is located at the end of the pipeline and is connected to the main pipeline via a tee fitting. The receiver consists of a pressure vessel, valves, and fittings, and is designed to safely receive the pig at the end of its journey.
To receive a pig, the receiver is first pressurized with the fluid or gas used to propel the pig. The pig is then detected using sensors or other equipment as it approaches the receiver. Once the pig reaches the receiver, it is captured and secured in place. The pressure is then gradually reduced, allowing the pig to be safely removed from the
ALI ENTERPRISE (AE), DESIGNED AND SUPPLING PIG LAUNCHERS AND PIG RECEIVERS BASE ON ASME STANDARDS. PIG LAUNCHERS AND PIG RECEIVERS ARE INTEGRAL TO THE PIPELINES PIGGING SYSTEM. NORMALLY WE ARE USING PIG LAUNCHER AND RECEIVER FOR SEPARATE DIFFERENT PRODUCTS WITHIN A PIPELINE, IMPROVES THE EFFICIENCY AND FLOW OF THE PIPELINE AND HELPS PREVENT CORROSIVE DAMAGE TO THE PIPES.
We make everything easy for you, Please Call Us on +88 0171755 7612 today! for any Oil and Gas, Fire and Safety system, Engineering, Construction & Fabrication & Field Services.
